Balluff Linear Position Transducer – BTL5-Q1030-M0305-Z-S140

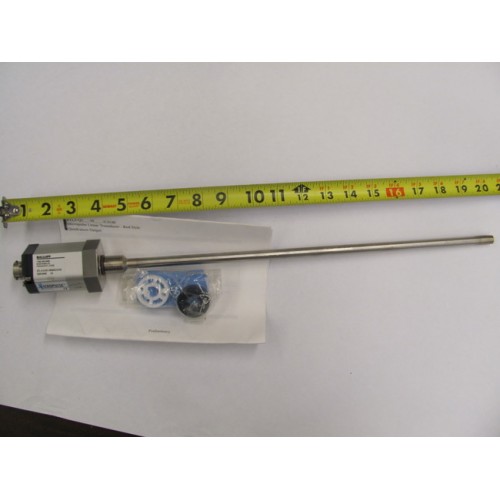

**NEW IN BOX** Balluff Position Transducer

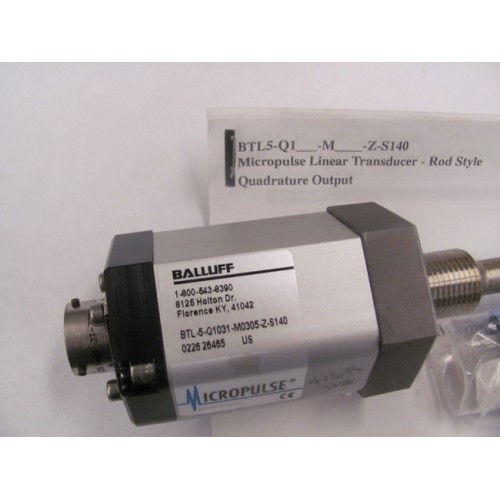

P/N: BTL5-Q1031-M0305-Z-S140

Micropulse – Z-Style
Pressure Rated to 8,700 psi for use in hydraulic cylinders

Codes:

Q = Quadrature Output
1 = +24 vdc +/-20% Supply voltage
0 = 833 kHz Quadrature Frequency
3 = 10 micrometer system resolution
1 = free running – 1 ms update – less than or equal to 1250 mm stroke

M0305 = Stroke Length

Z = Std Rod style (3/4-16 UNF mounting threads and 50.8 mm null zone. 10.2 mm dia pressure tube

S140 = ms connector
